Airless Coating Pump

APPLICATION:
General PVC, PU, water-based,medium and high viscosity coatings; suitable for medium and high volume spraying; high safety, low waste, long life.

FEATURES:
LOW POLLUTION
Air powered high pressure pump; the coating is directly aerated; no reacting when spraying the paint; the operating environment is improved.
HIGH SPRAYING SPEED
Airless spraying gun; the speed is 3-10 times than that by ordinary spraying gun.
SAVES PAINT AND LABOR
The adhesion rate is 80%; save much paint and shorten the working hours and labor.

	KL-6M-30-1(106-032) Fluid pressure ratio :30:1 Max. Continuous flow:0~4 L/min Max. fluid pressure:200 kg/cm2 Air motor effective diameter:φ153 mm Air motor stroke:100 mm Air motor speed: 0~60 cycles/min. Air inlet size:3/8"PT(F) Fluid outlet size:3/8"PT(F)

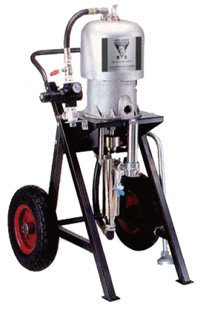

	KL-7M-30-1(107-032) Fluid pressure ratio:30:1 Max. Continuous flow:0~9 L/min Max. fluid pressure:200 kg/cm2 Air motor effective diameter:φ178 mm Air motor stroke:120 mm Air motor speed: 0~60 cycles/min. Air inlet size:1/2"PT(F) Fluid outlet size:3/4"PT(F)

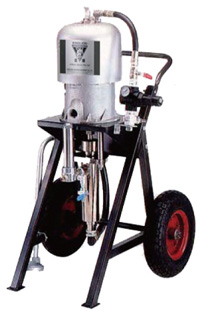

	KL-10M-45-1(108-045) Fluid pressure ratio:45:1 Max. Continuous flow:0~12 L/min Max. fluid pressure:270 kg/cm2 Air motor effective diameter:φ254 mm Air motor stroke:120 mm Air motor speed: 0~50 cycles/min. Air inlet size:3/4"PT(F) Fluid outlet size:1"PT(F)
