Air Delivery Piston Pumps

Features:
Design for medium and high viscosity
2 ball check pump operation for uniform flow.
Excellent abrasion and corrosion resistance
Divorced air motor eliminates fluid and fume contamination, reducing maintenance.
Explosion proof air-powered pump

Advantages:
Increase Production Capacity
Improve Quality Saving Labor Cost
Reduce Waste
Mass Producion
Minimize Maintenance
Fixed Production Procedure
Automatic production

Apply Materials:
Waterborne Materials, Resins, Oil/Inks, Acids Materials, Solvent, Primer for car, Paint,
Wax, Adhesives

KL-2M-3-1-S(502-002)
Fluid pressure ratio:3:1
Max. Continuous flow:11 L/min
Max. fluid pressure:12bar
Air motor diameter:φ50mm
Air inlet size:1/4"PT(F)
Fluid inlet size:3/4"PT(F)
Fluid outlet size:3/4"PT(F)
Pump size:L620mm x W70mm
Weight:4kg

KL-2M-3-1-L(502-001)
Fluid pressure ratio:3:1
Max. Continuous flow:11 L/min
Max. fluid pressure:12bar
Air motor diameter:φ50mm
Air inlet size:1/4"PT(F)
Fluid inlet size:3/4"PT(F)
Fluid outlet size:3/4"PT(F)
Pump size:L1325mm x W70mm
Weight:7kg

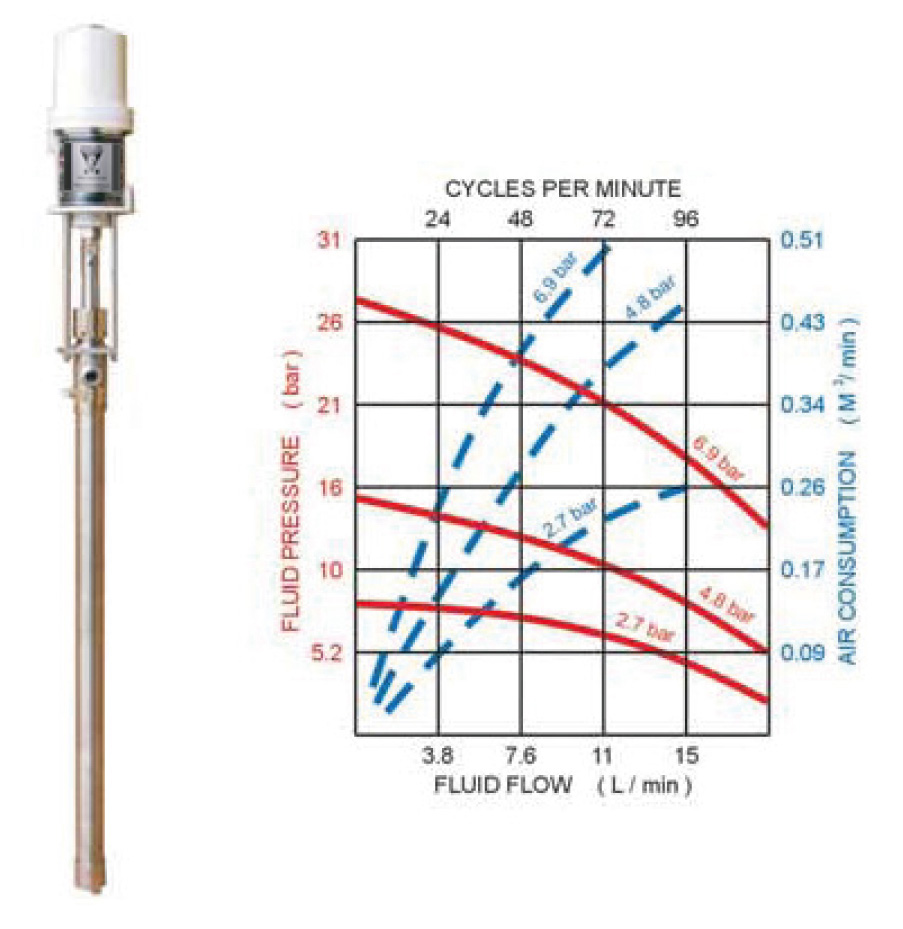

KL-4M-5-1(504-205)
Fluid pressure ratio:5:1
Max. Continuous flow:11 L/min
Max. fluid pressure:30bar
Air motor diameter:φ108mm
Air inlet size:3/8"PT(F)
Fluid inlet size:3/4"PT(F)
Fluid outlet size:3/4"PT(F)
Pump size:L1430mm x W135mm
Weight:12kg

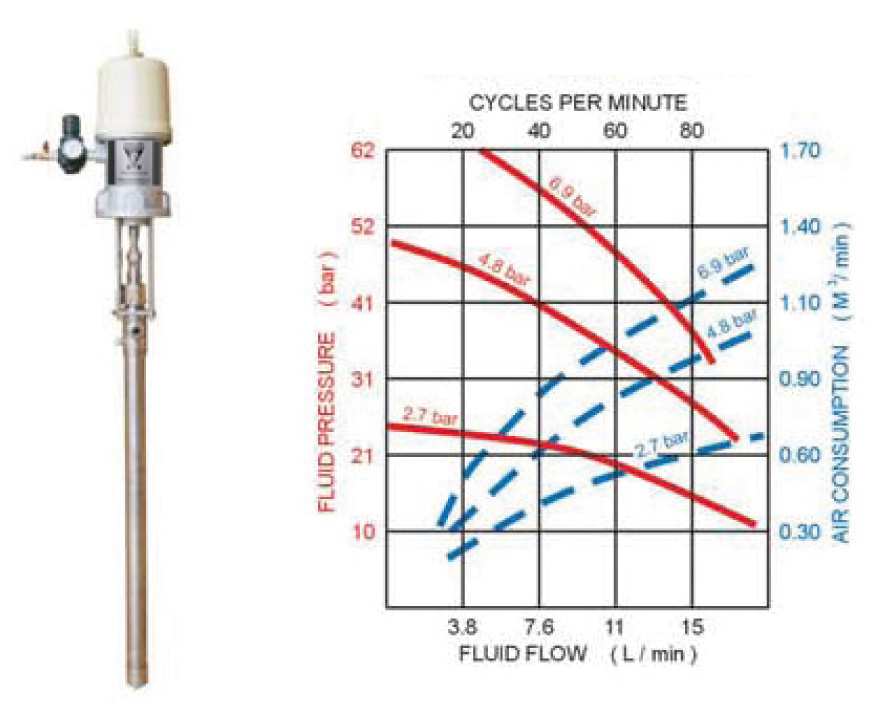

KL-6M-10-1(506-210)
Fluid pressure ratio:10:1
Max. Continuous flow:12 L/min
Max. fluid pressure:70bar
Air motor diameter:φ153mm
Air inlet size:3/8"PT(F)
Fluid inlet size:3/4"PT(F)
Fluid outlet size:3/4"PT(F)
Pump size:L1610mm x W170mm
Weight:18.5kg

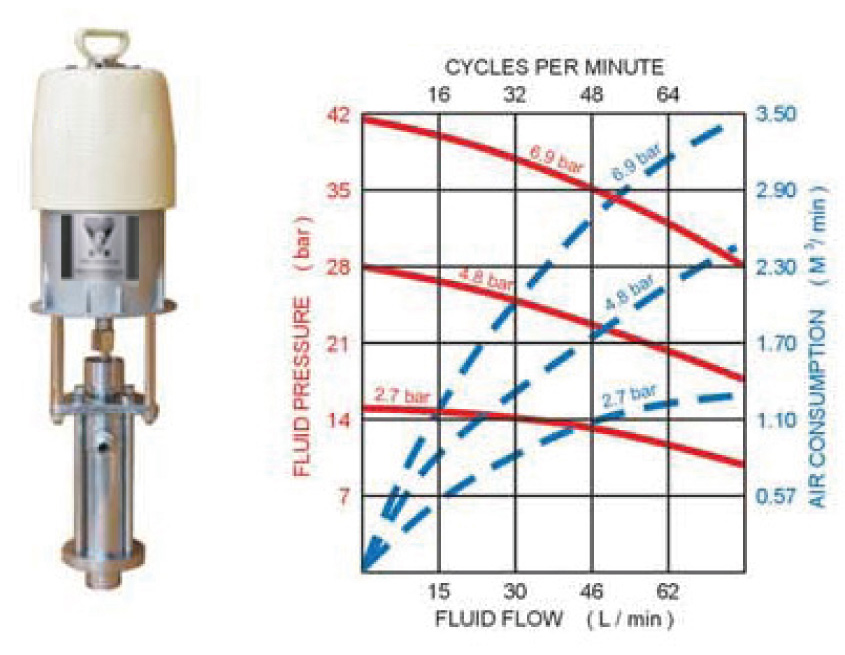

KL-7M-5-1(507-205)
Fluid pressure ratio:5:1
Max. Continuous flow:60 L/min
Max. fluid pressure:30bar
Air motor diameter:φ178mm
Air inlet size:1/2"PT(F)
Fluid inlet size:1 1/2"PT(F)
Fluid outlet size:1"PT(F)
Pump size:L980mm x W280mm
Weight:52kg

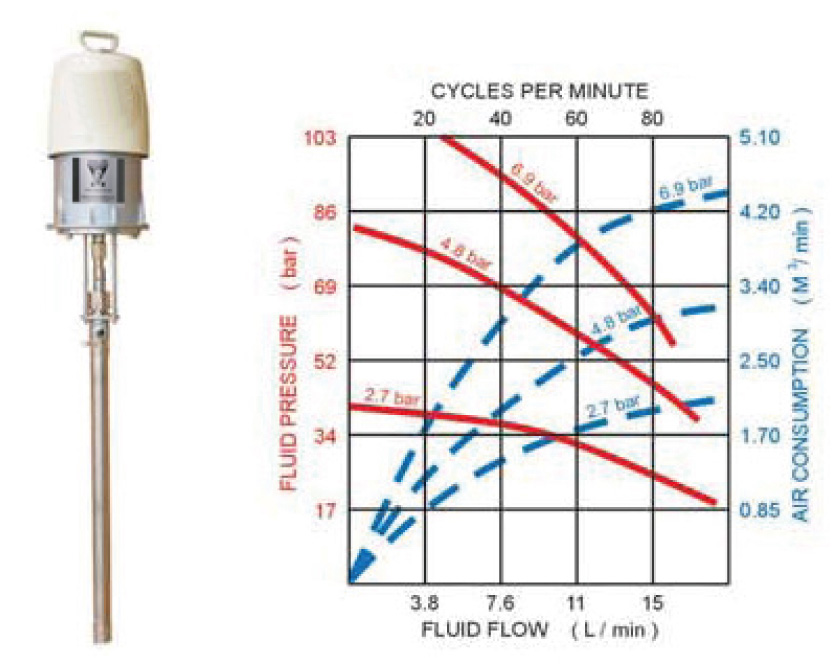

KL-7M-15-1(507-215)
Fluid pressure ratio:15:1
Max. Continuous flow:12 L/min
Max. fluid pressure:70bar
Air motor diameter:φ178mm
Air inlet size:1/2"PT(F)
Fluid inlet size:3/4"PT(F)
Fluid outlet size:3/4"PT(F)
Pump size:L1660mm x W280mm
Weight:33kg

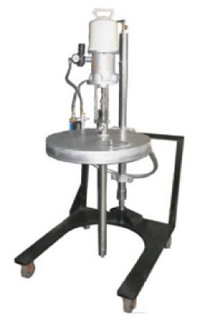

KL-6M-10-1-55G (106-010)

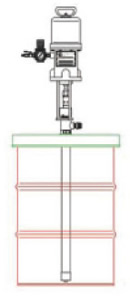

55 Gal Drum Cover

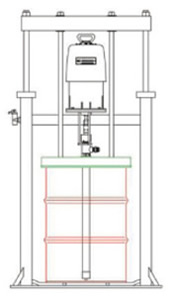

55 Gal two post drum

Hanging

Power Factor “Rule of thumb” chart
Viscosity In Cemtipoise	Approximate Power Factor Needed
50 to 500 500 to 1,000 1,000 to 3,000 3,000 to 6,000 6,000 to 9,000 9,000 to 15,000 15,000 to 20,000 20,000 to 30,000 30,000 to 40,000 40,000 to 60,000 60,000 to 75,000 75,000 to 90,000 90,000 to 120,000 120,000 to 200,000 200,000 to 1,000,000 over 1,000,000 Consult Factory	1:1 2:1 3:1 4:1 5:1 6:1 7:1 8:1 9:1 10:1 11:1 12:1 13:1 14:1 15:1 to 20:1

Approximate Viscosities of Common Materials (At Room Temperature-21°C)
Material	Viscosity In Cemtipoise
Water Milk SAE 10 Motor Oil SAE 20 Motor Oil SAE 30 Motor Oil SAE 40 Motor Oil Castor Oil Karo Syrup Honey Chocolate Syrup Ketchup Mustard Sour Cream Peanut Butter Shortening	1 cps 3 cps 85-140 cps 140-420 cps 420-650 cps 650-900 cps 1,000 cps 5,000 cps 10,000 cps 25,000 cps 50,000 cps 70,000 cps 100,000 cps 25,000 cps 1,200,000 cps
