High Performance
Automatic Spray Gun




KLP-110 KLP-210



KLP-110/210 specisl

Characteristics:
Require low air pressure; suggest CAP 1.4kg/cm², FAN 1.6kg/cm² for the best performance, high attach rate, saving upmost paint.
Small Nozzle Size: KLP-110 Diameter Ø 0.5mm; KLP-210 Diameter Ø 0.8m.
Atomized paint in fine particulate, uniform distribution and concentration on spraying objects steadily, without over-atomization problem.
Air inlet of the atomization and spray pattern are setting outside of the robot or machine, no need to stop the operation when adjusting the air pressure.
Two paint hoses design, one paint inlet, another is paint outlet to easy the cleaning operation.
Special air cap design with a simple maintenance is not easy to remain the coating material.
Nozzle and firing pin are made by SUS303 stainless steel material, apply for both oil and water base paints.
Packing of the firing pin is made by TEFLON material, can resist solvent, acid, and alkalinity chemical materials.

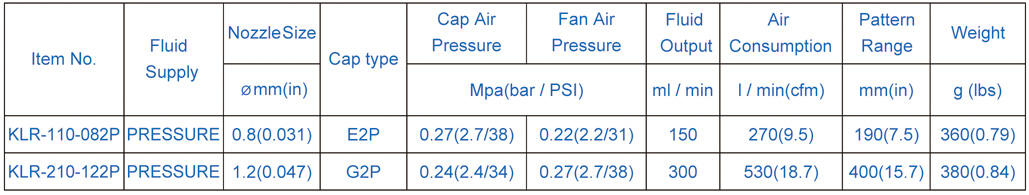

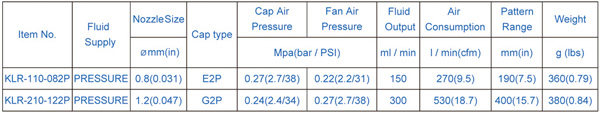

KLP-110
Spraying distance 100mm; Fluid Viscosity 9 sec/NK-2; Fluid Inlet 1/8PF; Air Inlet 1/8PF; Cylinder Inlet 1/8PF

KLP-210
Spraying distance 150mm; Fluid Viscosity 9 sec/NK-2; Fluid Inlet 1/8PF; Air Inlet 1/8PF; Cylinder Inlet 1/8PF
