| HVLP Spray Gun |
| |
|
|
KLLG-210 |
KLLG-110 |
|
KLLG-110/210
Characteristics:
Low pressure, high volume, air cap inner pressure less than 0.7kg/sq. cm (10psi)
Wide spray pattern range, very fine atomizing particle, even spread, fast coating material flow, steady, highly effective spray and save the coating material.
Light weight, light trigger operation and ergonomic shaped handle cause long operation without tired feeling.
Special air cap design with a simple maintenance is not easy to remain the coating material.
Nozzle and firing pin are made by SUS303 stainless steel material, apply for both oil and water base paints.
The Teflon seal ring is used to resist chemical like solvent, acid, alkali…etc.
|
|

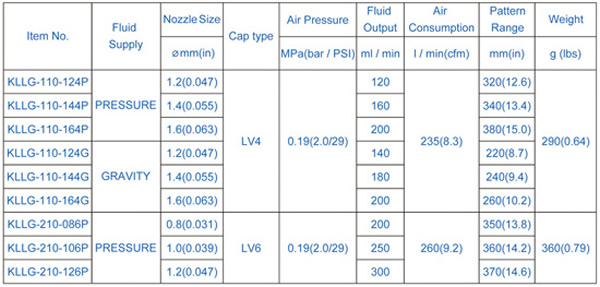

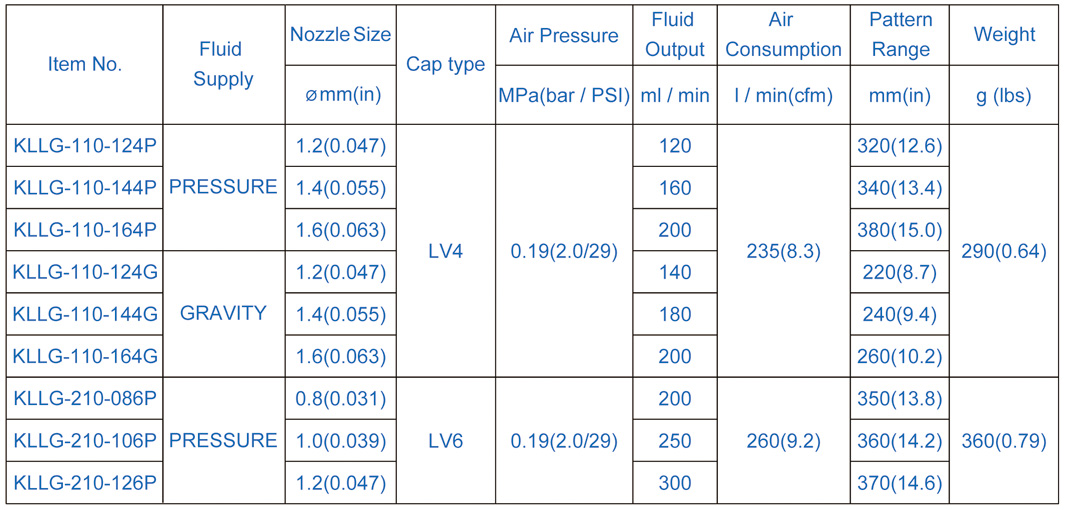

KLLG-110
Spraying distance200mm; Fluid Viscosity 9 sec/NK-2; Fluid Inlet 1/4PF; Air Inlet 1/8PF
KLLG-210
Spraying distance250mm; Fluid Viscosity 9 sec/NK-2; Fluid Inlet 3/8PF; Air Inlet 1/8PF |
| |
|
|
KLLG-51/410
Characteristics:
Low pressure, high volume, air cap inner pressure less than 0.7kg/sq. cm (10psi).
Wide spray pattern range, very fine atomizing particle, even spread, fast coating material flow, steady, highly effective spray and save the coating material.
Light weight, light trigger operation and ergonomic shaped handle cause long operation without tired feeling.
Special air cap design with a simple maintenance is not easy to remain the coating material.
Spray nozzle and needle are made by SUS303 stainless steel and allow spraying the water basis coating material.
The Teflon seal ring is used to resist chemical like solvent, acid, alkali…etc.
|
|

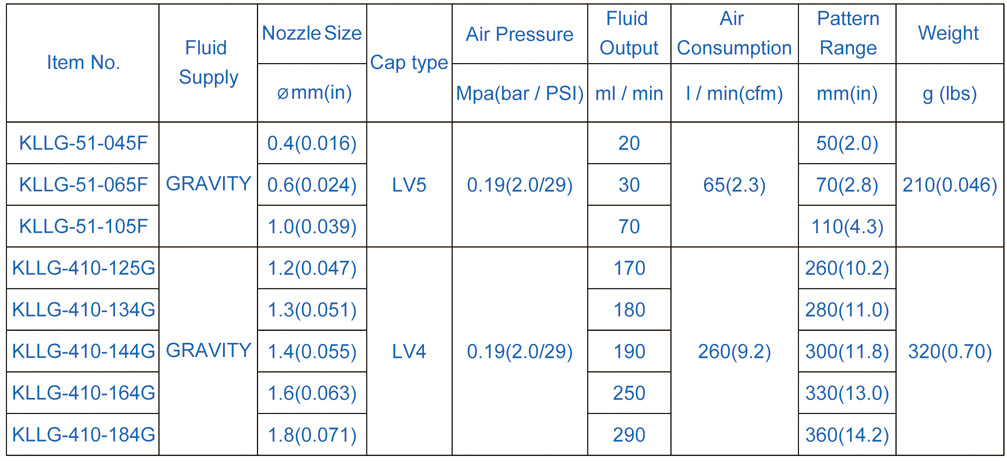

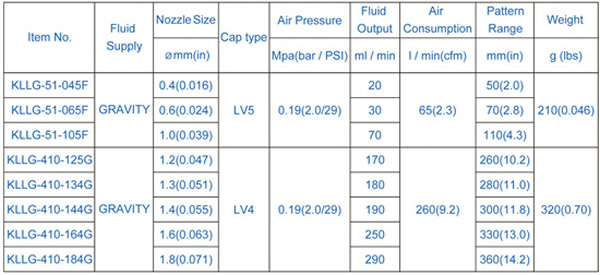

KLLG-51
Spray Distance 150mm, Fluid Viscosity 9sec-NK-2, Fluid Inlet M14x1.0P, Air Inlet 1/4PF
KLLG-410
Spray Distance 250mm, Fluid Viscosity 9sec-NK-2, Fluid Inlet M16x1.5P, Air Inlet 1/4PF |
| |
|
|
