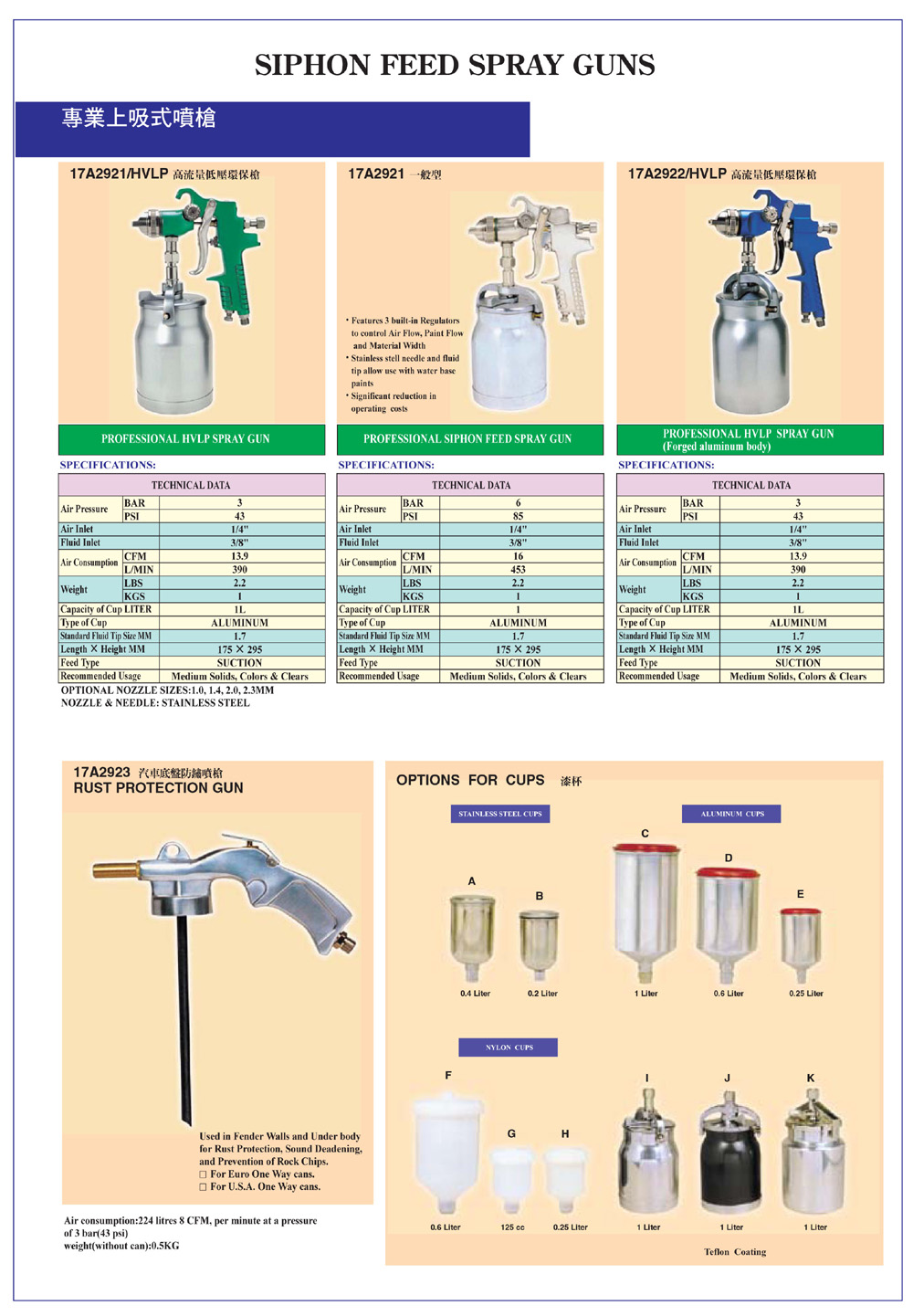

| Siphon Feed Spray Gun |
| |
17A2921/HVLP Professional HVLP Spray Gun |
Specification
| Technicaldata |
17A2921/HVLP |
| Air Pressure |
3 BAR, 43 PSI |
| Air Inlet |
1/4" |
| Fluid Inlet |
3/8" |
| Air Consumption |
13.9 CFM, 390 L/MIN |
| Weight |
1 KGS (2.2 LBS) |
| Capacity of Cup Liter |
1 L |
| Type of Cup |
Aluminum |
| Standard Fluid Tip Size |
1.7 MM |
| Length x Height |
175x295 MM |
| Feed Type |
Suction |
| Recommended Usage |
Medium Solids, Colors&Clears |
Optional Nozzle Sizes: 1.0, 1.4, 2.0, 2.3 MM
Nozzle & Needle: Stainless Steel
|
17A2921 Professional Siphon Feed Spray Gun |
● Features 3 built-in regulators to control air flow, paint flow and material width.
● Stainless steel needle and fluid tip allow use with water base paints.
● Significant reduction in operating costs.
|
Specification
| Technicaldata |
17A2921 |
| Air Pressure |
6 BAR, 85 PSI |
| Air Inlet |
1/4" |
| Fluid Inlet |
3/8" |
| Air Consumption |
16 CFM, 453 L/MIN |
| Weight |
1 KGS (2.2 LBS) |
| Capacity of Cup Liter |
1 L |
| Type of Cup |
Aluminum |
| Standard Fluid Tip Size |
1.7 MM |
| Length x Height |
175x295 MM |
| Feed Type |
Suction |
| Recommended Usage |
Medium Solids, Colors&Clears |
|

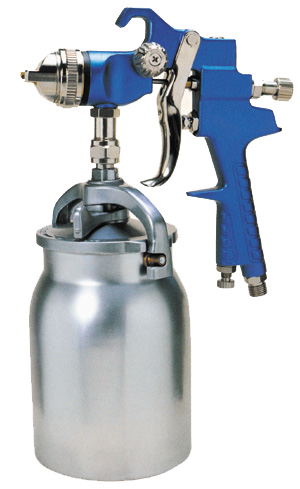

17A2922/HVLP Professional HVLP Spray Gun (Forged Aluminum Body) |
Specification
| Technicaldata |
17A2922/HVLP |
| Air Pressure |
3 BAR, 43 PSI |
| Air Inlet |
1/4" |
| Fluid Inlet |
3/8" |
| Air Consumption |
13.9 CFM, 390 L/MIN |
| Weight |
1 KGS (2.2 LBS) |
| Capacity of Cup Liter |
1 L |
| Type of Cup |
Aluminum |
| Standard Fluid Tip Size |
1.7 MM |
| Length x Height |
175x295 MM |
| Feed Type |
Suction |
| Recommended Usage |
Medium Solids, Colors&Clears |
|

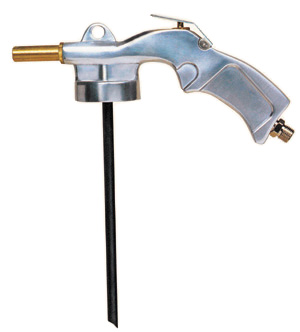

17A2923 Rust Protection Gun |
Used in fender walls and under body for rust protection, sound deadening, and prevention of rock chips.
口For EURO one way cans
口For U.S.A. one way cans
Air Consumption: 224 Litres 8 CFM, per minute at a pressure of 3 BAR (43 PSI)
Weight (without can): 0.5 KG
|

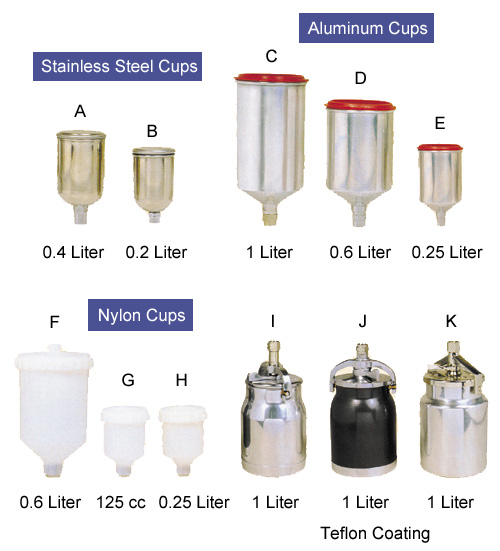

Options For Cups
|
| |
| |
