Application:
With this versatile air tank, almost any professional result can be easily reached. Special materials such as enamel paint, chemical liquid, glue, fluid food, sticky material, etc. can also be transported as smoothly as required.
17P0101-01
1/2 Gallon (2 Liters)
Net WT. : 1.3 kgs
Gross WT. : 1.8 kgs
Cuft:0.24’(140L x 140W x 345H)mm
17P0101-02
2.1/2 Gallon (10 Liters)
With Aluminum lnner Barrel
Net WT. : 13.3 kgs
Gross WT. : 14.3 kgs
Cuft:1.6’(305L x 305W x 480H)mm
Option:Stainless Steel lnner Barrel
17P0101-03
2.1/2 Gallon (10 Liters)
Net WT. : 12 kgs
Gross WT. : 13.5 kgs
Cuft:1.6’(305L x 305W x 480H)mm
Option:Aluminum or Stainless Steel lnner Barrel
17P0101-04A
2.1/2 Gallon (10 Liters)
Lnner Tank with Teflon Coating
Net WT. : 9.7 kgs
Gross WT. : 10.7 kgs
Cuft:1.3’(260L x 260W x 500H)mm
Option:Aluminum or Stainless Steel lnner Barrel
17P0101-05
5 Gallon (20 Liters)
With Stainless Steel lnner Barrel
Net WT. : 23.1 kgs
Gross WT. : 25.1 kgs
Cuft:3.7’(415L x 360W x 695H)mm
17P0101-06
10 Gallon (40 Liters)
With Stainless Steel lnner Barrel
Net WT. : 25 kgs
Gross WT. : 27.8 kgs
Cuft:4.5’(415L x 360W x 847H)mm

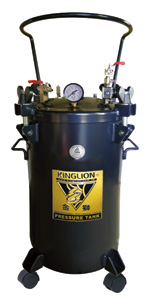

17P0101-07
15 Gallon (60 Liters)
With Stainless Steel lnner Barrel
Net WT. : 31.3 kgs
Gross WT. : 34.3 kgs
Cuft:7.5’(500L x 500W x 880H)mm

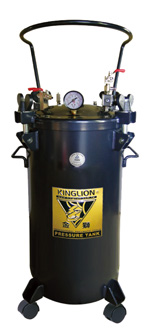

17P0101-08
20 Gallon (80 Liters)
With Stainless Steel lnner Barrel
Net WT. : 32.2 kgs
Gross WT. : 35.8 kgs
Cuft:8.5’(500L x 500W x 1000H)mm
