Application:
With this versatile air tank, almost any professional result can be easily reached. Special materials such as enamel paint, chemical liquid, glue, fluid food, sticky material, etc. can also be transported as smoothly as required.
17P0102S-01
2.1/2 Gallon (10 Liters)
Net WT. : 14.2 kgs
Gross WT. : 15.4 kgs
Cuft:1.8’(290L x 290W x 635H)mm
Option:Stainless Steel lnner Barrel
17P0102S-02
5 Gallon (20 Liters)
Net WT. : 21.6 kgs
Gross WT. : 23.6 kgs
Cuft:3.7’(410L x 325W x 790H)mm
Option:Stainless Steel lnner Barrel
17P0102S-03
12.5 Gallon (50 Liters)
Net WT. : 23.3 kgs
Gross WT. : 28.3 kgs
Cuft:6.8’(475L x 470W x 815H)mm
Option:Stainless Steel lnner Barrel

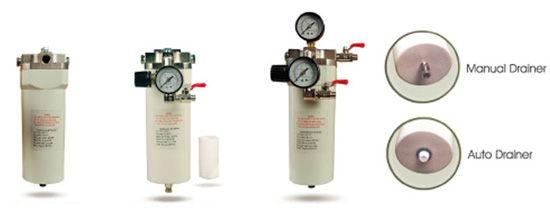

17A1025-01
17A1025A-01
17A1025-02
17A1025A-02
17A1025-03
17A1025A-03
Other type of filters upon request
Model
Description
Net WT.
Gross WT.
Cuft
17P01025-01
Manual Drainer Without Gauge
10.1kgs
10.9kgs
1.5'
17P01025-02
Manual Drainer With Gauge
12.7kgs
13.5kgs
1.5'
17P01025-03
Manual Drainer With Two Gauge
13.4kgs
14.2kgs
1.5'
17P01025A-01
Auto Drainer Without Gauge
10.1kgs
10.9kgs
1.5'
17P01025A-02
Auto Drainer With Gauge
12.7kgs
13.5kgs
1.5'
17P01025A-03
Auto Drainer With Two Gauge
13.4kgs
14.2kgs
1.5'
Specifications & Functions:
Air Inlet:1/2 F.P.T.
Air Outlet:3/8 F.P.T.
Max. Flow Volume:120 CFM
Max. Flow Oil Grade:5 M
Eliminate Water up to:99%
Max. Pressure:300 P.S.I.
Caution:
Please hold the filter in the right position.
Do not topple even after using.
For better performance of filter, the Air Hose
MUST be longer than 9 Neters.
