10:1 Air Delivery Piston Pump
(Quiet Model)


Features:
Design for medium and high viscosity
2 ball check pump operation for uniform flow.
Excellent abrasion and corrosion resistance
Divorced air motor eliminates fluid and fume contamination, reducing maintenance.
Explosion proof air-powered pump

Advantages:
Increase Production Capacity
Improve Quality
Saving Labor Cost
Reduce Waste
Mass Producion
Minimize Maintenance
Fixed Production Procedure
Automatic production

Apply Materials:
Waterborne Materials ,Resins ,Oil/Inks ,Acids Materials ,Solvent ,Primer for car ,Paint ,
Wax ,Adhesives

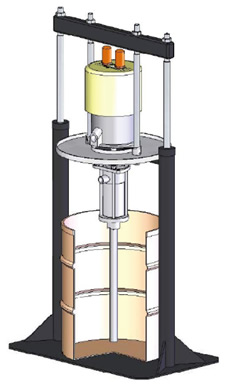

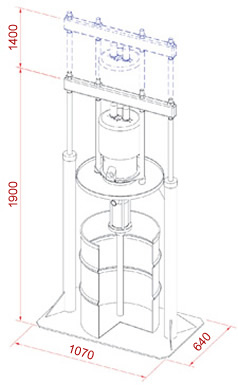

KL-10MQ-10-1(Q08-010) 55 Gal.tank

WEIGHT : 300 KGS





Specification

Ratio

10:1

Flow rate 60 l/mm
Fluid outlet - Max. 60 bar
Air inlet - Max. 7 bar
Air motor diameter Ф254mm
Air consumption - 3bar 2800 l/mm
Air inlet size 1/2" PT
Fluid outlet size 1 1/2"PT
Container size 55 Gal.
Air powered lift two post
Noise level 85 dB
