29:1 High Viscosity Pumping System


Applications:
1.Tranferring materials directly from the material tanks to work stations
 (operators, robots, or special equipments).
2. Transferring viscosity materials as system demand.
3. Apply for standard 55 gallons or 5 gallons tanks.

Apply For:
Dispensing, Adhesive, Cartridge filling, Potting,Sealing, Spray, Automotive sealant and adhesive.

Apply Materials:
PVC'glue PVC ,Silicone ,Caulking ,High viscosity lubricating oil ,Ink ,Mastic ,Sealant ,
Paste ,Adhesive

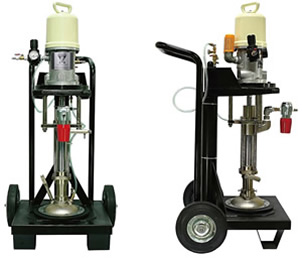

KL-6M-29-1(106-029) 5 Gal.tank type

WEIGHT : 85 KGS





Specification

Ratio

29:1

Flow rate 8 l/mm
Fluid outlet - Max. 200 bar
Air inlet - Max. 7 bar
Air motor diameter Ф153mm
Air consumption - 3bar 1100 l/mm
Air inlet size 1/2" PT
Fluid outlet size 1"PT
Container size 5 Gal. or 55 Gal.
Air powered lift Single post or two post
