80:1 Delivery Piston Pump-(Quiet Model)


Applications:
1.Tranferring materials directly from the material tanks to work stations
 (operators, robots, or special equipments).
2. Transferring viscosity materials as system demand.
3. Apply for standard 55 gallons or 5 gallons tanks.

Apply For:
Dispensing, Adhesive, Cartridge filling, Potting,Sealing, Spray, Automotive sealant and adhesive.

Apply Materials:
PVC'glue PVC ,Silicone ,Caulking ,High viscosity lubricating oil ,Ink ,Mastic ,Sealant ,
Paste ,Adhesive

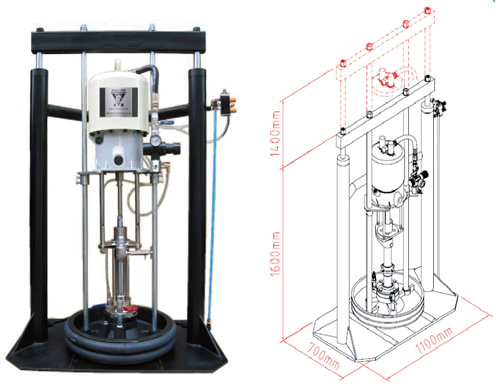

KL-10MQ-10-1A(Q08-106) 5 Gal.tank type     WEIGHT : 85 KGS

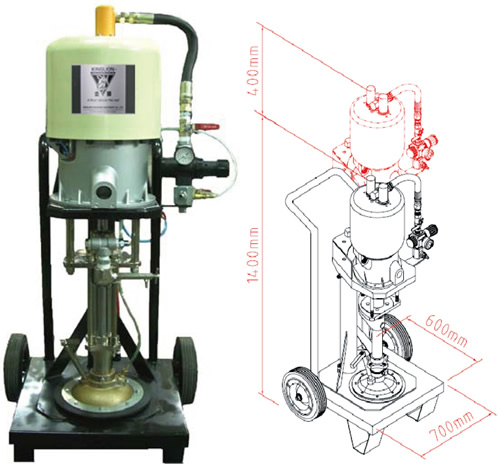

KL-10MQ-10-1B(Q08-206) 55 Gal.tank type    WEIGHT : 300 KGS





Specification

Ratio

80:1

Flow rate 8 l/mm
Fluid outlet - Max. 420 bar
Air inlet - Max. 7 bar
Air motor diameter Ф254mm
Air consumption - 3bar 2800 l/mm
Air inlet size 3/4" PT
Fluid outlet size 1"PT
Container size 5Gal. or 55 Gal.
Air powered lift pail or two post
Noise level 85 dB
