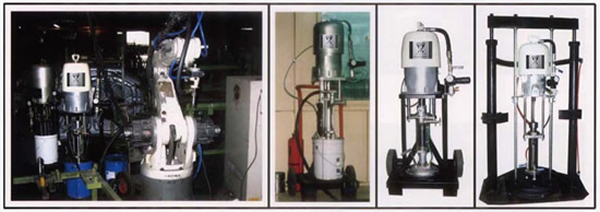

High Viscosity Pumping System


Kinglion devotes years experience and technology to create this high viscosity pumping system, which can withdraw high viscosity sticky material from the connected containers easily. It is the most economic, efficient, and useful industrial equipment applying for various materials to different industries.

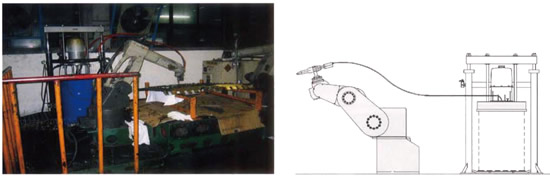

Fixed Type With Automatic Spray

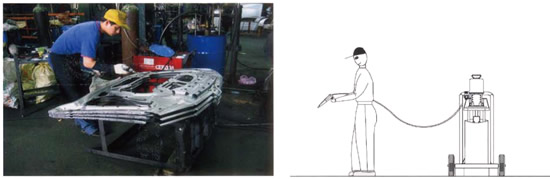

Torlley Ttype With Manual Spray

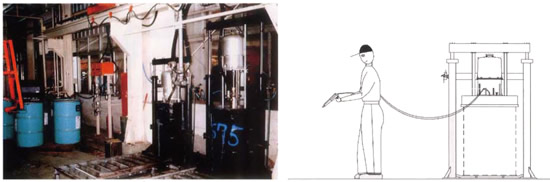

Fixed Type With Manual Spray



Typical fluid handled:
PVCS PVC ,Silicone ,Caulking ,Heavy lubricant ,Ink ,Mastic ,Sealant ,Paste ,Adhesive

Typical applications:
Dispensing ,Adhesive ,Cartridge filling ,Patting ,Sealing ,Spray ,Automatic sealant and adhesive



Specification

Model KL-6M-29:1
(106-029)
KL-7M-40:1
(107-040)
KL-10M-55:1
(108-055)
Ratio 29:1 40:1 55:1
Flow rate 3 l/mm 8 l/mm 12 l/mm
Fluid outlet - Max. 188 bar 275 bar 341 bar
Air inlet - Max. 7 bar 7 bar 7 bar
Air motor diameter Ф153mm Ф178mm Ф254mm
Air consumption - 3bar 500 l/mm 1100 l/mm 2800 l/mm
Air inlet size 3/8" PT 1/2" PT 3/4" PT
Fluid outlet size 1"PT 1"PT 1"PT
Fluid outlet size Pail 5 Gal. Pail 5 Gal. Drum 55 Gal.
Air powered lift Single post Single post Two post







High pressure fluid regulater



A500B Manual dispense gun



High pressure Z-type swivel



Nozzles Ø1mm  Ø2mm  Ø3mm
