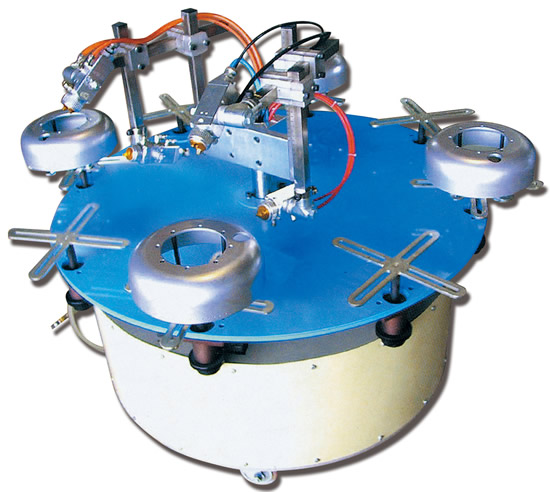

10-EIR Automatic Eight-Index Rotating
Painting Machine


FEATURES:

Perfect painting effect, no missing space: Three sets 360° rotating units, two units for clockwise and counterclockwise rotating spraying, one unit for electrostatic dust-disposal (optional).
Best paint saving design: No paint will spray out during object moving.
Long product life: Mechanical division design easy to maintain and minimize trouble happening chance.

APPLICATION:

Suitable for painting objects like clock frame, wheel cover, industrial electric and electronic plastic materials.

OPTIONS & FUNCTION:

Spray Guns Swing Unit: Increasing painting function for special long or deep shape object.
Clamping Unit (above and below): For longer rectangular object.









SPECIFICATIONS

Model 10EIR-1030

10EIR-1860

Rotating Frame Diameter (min)

300 600

Rotating Tray Diameter (min)

1000 1800

Index Velocity (sec/step)

2~5 3~8

Piece Rotating Velacity (rpm) Working

100~600 50~300

Spraying Gun Amount (pcs)

4※ 8※

Hourse Power (HP)

1.5 1.5

Air Consumption (L/min)

1080 2160

Sept Switch

Electrostatic Dust-free

○:Standard     ※:Option
