| Full Automatic Electric Epoxy Resin Drying Oven |
| |
Especially designed for drying poly, epoxy resin and baking paint in the ornament and badge industry.
Characteristics:
Uses long axis type professional branded motor, keeps noise down and lowers fault rate.
Adopted Multi-blade Blower Wheel with enforced circularity to reduce the temperature difference of the upper and lower oven.
Equipped with timer to shut down the power, saves labor cost.
Inside Oven equipped with several layers to accommodate more objects for drying.
Equipped with adjustable screw inside the oven to keep horizontal balance and to reduce losses during the drying process.
|

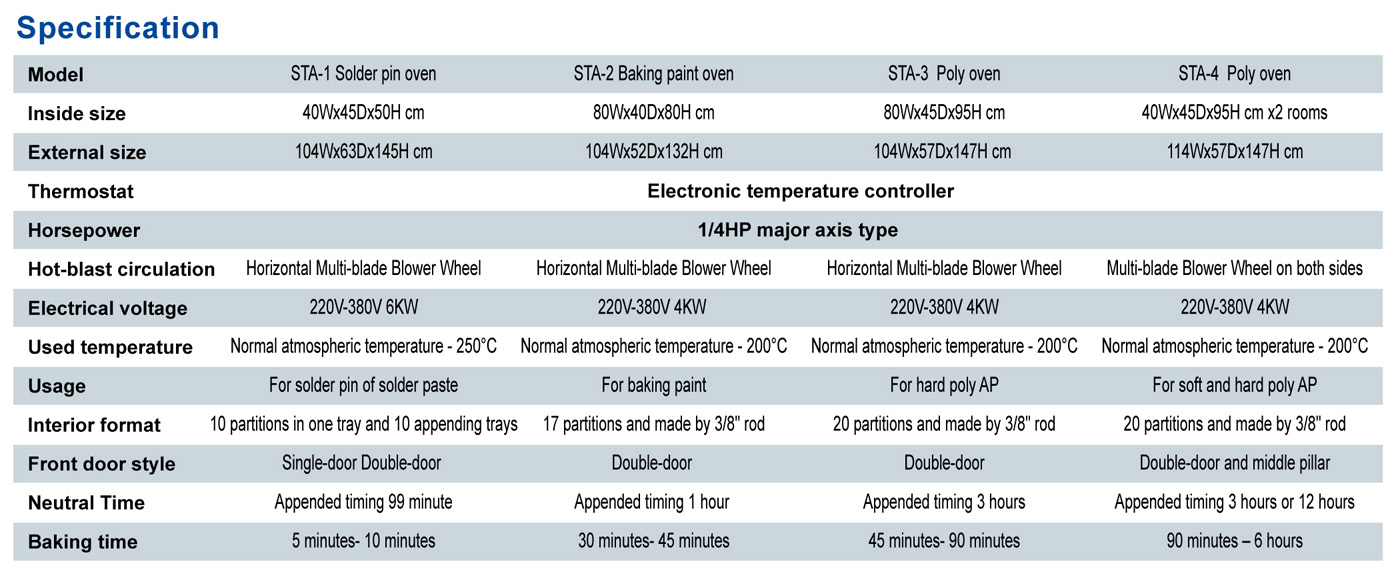

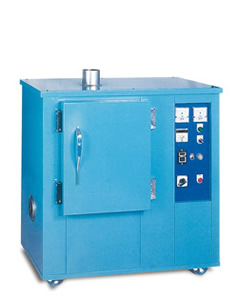

10STA-1 type Solder pin oven |

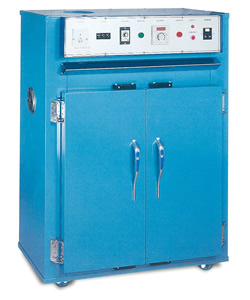

10STA-3 type Poly oven |
|
|
| |

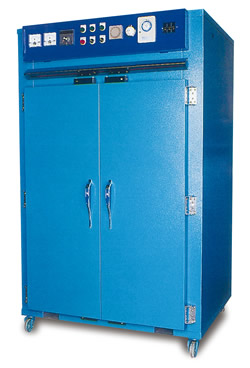

Halftone Oven (Cart type)
|
Standard specification
| Interior size |
115W x 80D x 155H (cm) |
| Exterior size |
137W x 92D x 210H (cm) |
| Controller |
Electronic temperature controller |
| Electric parts |
Voltmeter, Ampere Meter, NO-Fuse Breaker, heating lamp and heating switch , Motor starting switch , Electromagnetic Contactor, Timer switch. |
| Heating type |
Honeycomb heater |
| Circulation |
1HP major axis motor and Multi-blade Blower Wheel |
| Door type |
Double-door |
| Electrical voltage |
220V-380V 12kw |
| Temperature |
Available to 200℃ |
| Material |
Made of steel with powder coating finish. |
|
Private design available upon request.
|
High Temperature Ceramic Degreaser |
Standard specification
| Interior size |
60Wx60Dx60H (cm) |
| Exterior size |
137Wx92Dx133H (cm) |
| Controller |
Microcomputer procedure controller |
| Electric parts |
Voltmeter, Ampere Meter, NO-Fuse Breaker, heating lamp and heating switch , Motor starting switch , Electromagnetic |
| Heating type |
Heat-resistant electric pipe heaters |
| Power Control |
4- 20MA SCR non contact relay |
| Circulation |
1/2HP motor has belt transmission and blower wheel which is able to withstand high-temperature. |
| Door type |
Single-door, large-sized handle and hinges |
| Electrical voltage |
220V three phase 14kw |
| Temperature |
Two kinds as 600℃ and 500℃ |
| Material |
Interior made by No. 304 Sheets and Plates of Stainless Steel, Exterior made by iron and baking paint. |
|
| |
| |
