Standard Package KL-5000 |
Microcomputer Control Panel
● Input Voltage：AC 220V~240V+ 10%
● Power Used：2.5KW
● Perfect Quality.
● Japan's Fuji Frequency Converter.
● Germany's EAO pushbutton panel.
● Door-in-Door design to achieve efficient anti-dust effect.
● Ergonomic design. Digital control. Convenient operation.
|
 |
Professional Package KL-5100 |
Microcomputer Control Panel (Man-Machine interface)
● Input Voltage：AC 220V~240V+10%
● Power Used：2.5KW
● Servo Motor controlled reciprocator.
● Man-machine interface by using
● Fuji's 7.7" color screen
● Memory capacity up to 200 sets of operation.
|
 |
Twin-Turbine |
Rotary Atomizers of Liquid Electrostatic
● Drive Pressure：2 kg/ cm2
● Air Consumption：50N m2 /Hr
● Revolution：60000 RPM (no-load)
● Twin-turbine design provides high torque and atomization
effect
|
 |
High Atomization Spray DISK |
● Specification： ∮170mm, ∮230mm, ∮300mm
● Twin-Turbine pneumatic nozzle achieves superb atomization
effect even for high-viscosity paint.
● High-speed balance calibration, providing excellent stability
of the atomization disk.
|
|
Gear Pump |
● Input Voltage：AC 220V~240V+ 10%
● Horsepower：1/4 HP
● Output：200 cc~1500 cc(digital control)
● Spray Hose： Double-layer Teflon paint hose
● Titanium-plated for durable use and wearing resistance.
|
|
Electrostatic Power Supply |
● Input Voltage：AC 220V~240V+ 10%
● Power Used：DC 20KV~DC 110KV (no-speed regulating)
● Moment over-current disconnection protection, providing
higher safety factor
|
|

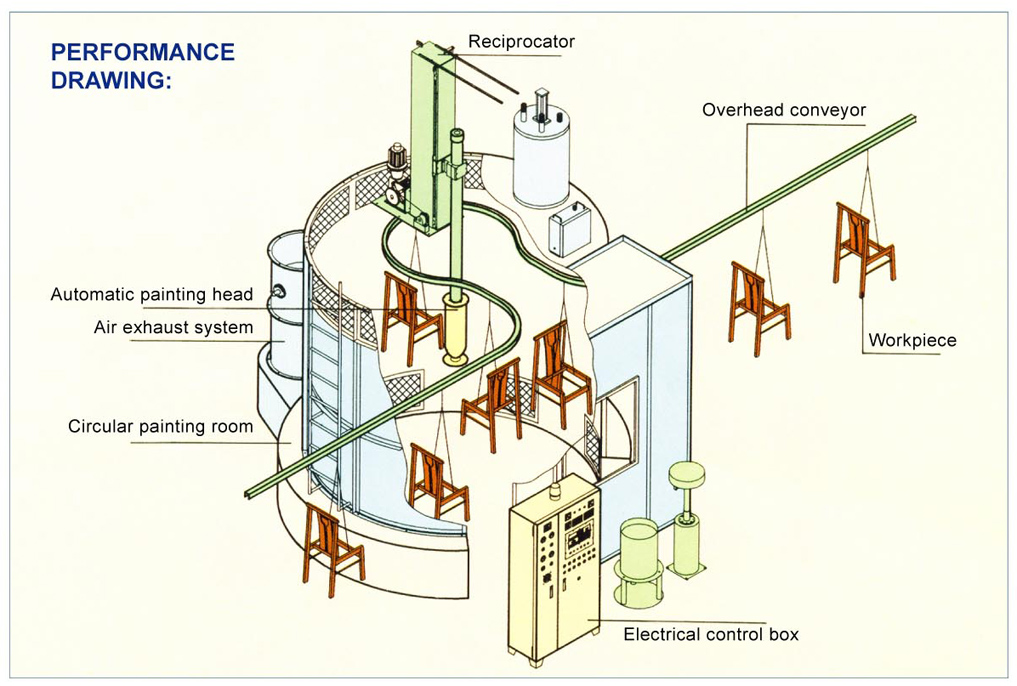

Reciprocator |
● Specification： 1200mm, 160mm, 1800mm, 2400mm
● Single travel, multi-speed shifting.
● Control Method：
1.Japan's Fuji Frequency Converter for speed control.
2.Man-machine interface control panel is controlled by
serve motor for regulating the travel speed. |
 |
Accessories |
● Travel Programmer
● Air Heater
● Turntable
● Insulation Table
● Air Filter(screening oil and water) |
