Manual Gun GX121 |
|
New Light Weight Manual Gun (25% lighter than our current model) |
|
|
|
GX121A(STD)
Hoses and cables are connected to the bottom of the gun grip. |
GX121B
Hoses and cables are connected to the rear of gun body. |
|
FEATURES:
● Handling is easier as it is lightweight and gun grip is easy-to-hold.
● High quality coating is achieved by the adoption of Pulse Power, a new charging
mechanism of high-voltage/low-current method that minimizes free-ions.
● Negative charge is standard. However, positive charge is possible with a replacement
of high voltage booster in the gun body.
● Cup set is available to accommodate small batch spray tests.
● A selection of Hose/Cable connection is available:GX121A and GX121B.
|
Specifications of GX121
Prime Feature |
Combined with the operation drawer of GX7000 Series. Pulse Power can be applicable. |
High Voltage Source |
High Voltage generator built in gun main body. |
Gun Cable Input Voltage |
24V (as maximum) (@AC peak value) |
Output Voltage |
100 KV as maximum (STD Polarity: Negative) |
Short-Circuit Current |
set at 100 A (as STD) |
Weight |
530g |
Cable/hoses Connection |
at grip bottom (STD) or at the rear of gun body (Option) |
Applicable Nozzles (choose one at order) |
T-Type Nozzle, Swirl Nozzle, Fan Nozzle, or Diffuser Nozzle. |
Optional Nozzles |
Long Barrel Nozzles, Long & Fine Barrel Nozzles |
|

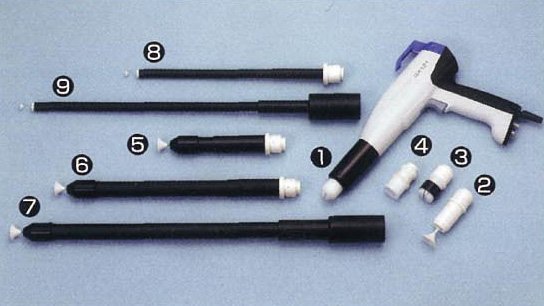

Wide Variety of Gun Nozzles
|
Choose Best Suited Nozzle for Your Applications. |
FEATURES:
1. T-Type Nozzle: Standard for GX121. Similar to standard Fan-Type Nozzle, and spray
pattern is softer than Fan-Nozzle 3.
2. Diffuser Nozzle: Orbicular Spray Pattern is shaped.
3. Fan Nozzle: Fanwise Spray Pattern is shaped. Spray seed is higher
than T-Type nozzle 1.
4. Swirl Nozzle: Orbicular Spray pattern can be adjusted with Swirl (Vortex) Air.
5. Long Barrel Nozzle #116: Extension Muzzle with Diffuser Head (116 mm long)
6. Long Barrel Nozzle #300: Extension Muzzle with Diffuser Head (300 mm long)
7. Long Barrel Nozzle #450: Extension Muzzle with Diffuser Head (450 mm long)
8. Long & fine Nozzle #300: Long and fine barrel enables such application as inside
coating of small diameter pipes (300 mm long)
9. Long & fine Nozzle #450: Longer by 150 mm than the above
Long & fine Barrel #300 Note: Nozzles 5. to 9. are on production demand.
|
Standard Nozzles for GX121 (Applicable for automatic Gun GX506N)
|
T-Type Fan Nozzle (STD) |
Spray pattern with the nozzle is very similar to an open fan. Spray speed with the nozzle is lower than that with Standard Fan Nozzle.
Wider and softer spray pattern with the nozzle is suitable for recessed parts application.
|
Fan Nozzle |
Spray pattern with the nozzle looks like that of an open fan.
Spray speed with the nozzle is higher than that with T-Type Fan Nozzle, and suitable for longer spray distance applications.
The width of spray pattern can be changed by the adjustment of pattern ring position.
|
Diffuser Nozzle |
Powder/air mixture sprayed from gun is diffused by diffuser to make hemisphere spray pattern.
Spray pattern can be changed by replacement of diffusers.
Multiple types of diffusers are available.
|
Swirl Nozzle |
Swirl air can change spray pattern during spraying without suspending operation.
There are four types of outer head (black part in the picture) available:
I.D. 12mm, 20mm, 30mm, and 40mm.
|
|
|
|
