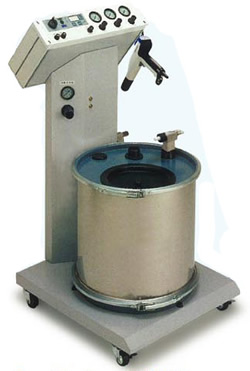

GX7000S
Standard Manual Gun Unit
Features
1. Equipped with High-Voltage Pulse Power /
Low-Current Charging Mechanism
2. Venturi and Powder Hose Joint are
combined,
simplifying replacement
3. Powder Hopper can be dismantled without
any tools |
Specifications GX7000S
| Applicable guns |
GX121 (and older models GX116, GX102, GX108) |
| High Voltage Source |
Pulse Power (standard corona charge is also available) |
| Power Cable Length |
5m (STD) with connectors at both ends |
| Power Hose |
5m x I.D. 9.5mm (STD). 5m x I.D. 12mm (Option) |
| Powder Hopper |
40 Litters (STD), 60 Litters (Option) |
| Maximum Powder Feed Rate |
Approx. 250g / min with 9.5mm hose
Approx. 450g / min with 12mm hose |
| Powder Feed Method |
Fluid. – Bed / Venturi Method |
| Dimensions and Weight |
W500 x D500 x H980 (excl. projections), 35kgs |
| Power Consumption |
90VA (100V, 50/60Hz) |
| Compressed Air Consumption |
Approx. 180N Lit / min. (0.5Mpa) |
|
 |
GX7000B
Accommodating Quick Color Change Unit
Features
1. Equipped with High-Voltage Pulse Power /
Low-Current Charging Mechanism
2. Venturi and Powder Hose Joint arecombined,
simplifying replacement.
3. Powder made fluid by the partial fluidizing
mechanism of the BoxFeedTube with the help of
vibrator |
Specifications GX7000S
| Applicable guns |
GX121 (and older models GX116, GX102, GX108) |
| High Voltage Source |
Pulse Power (standard corona charge is also available) |
| Power Cable Length |
5 m (STD) with connectors at both ends |
| Power Hose |
5 m x I.D. 9.5 mm (STD)
5m x I.D. 12mm (Option) |
| Maximum Powder Feed Rate |
Approx. 250g / min with 9.5 mm hose
Approx. 450g / min with 12mm hose |
| Powder Feed Method |
Powder is pumped directly from powder box. Powder is partially fluidized by fluidizer of BF Tube with the help of vibrator. |
| Dimensions and Weight |
W500 x D500 x H980 (excl. projections), 35kgs |
| Power Consumption |
110VA (100V, 50/60Hz) |
| Compressed Air Consumption |
Approx. 150N Lit / min. (0.5Mpa) |
|
 |

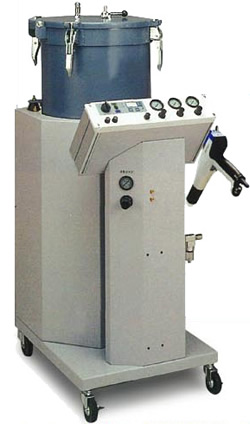

GX7000P
Pressurized Hopper achieves high output
Features
1. Equipped with High-Voltage Pulse Power /
low-Current Charging Mechanism
2. 3,000g / min. output (as maximum) per gun is
possible.
3. Minimized air consumption for powder
transportation creates higherwraparound and
transfer efficiency. |
Specifications GX7000P / GX7000PL
| Applicable guns |
GX121 (and older models GX116, GX102, GX108) |
| High Voltage Source |
Pulse Power (standard corona charge is also available) |
| Power Cable Length |
5m (STD) with connectors at both ends |
| Power Hose |
5m x I.D. 7mm (STD) 5m x I.D. 15mm(STD) |
| Powder Hopper |
60 Liters |
| Maximum Powder Feed Rate |
50 to 700g / min 700 to 3,000g / min |
| Powder Feed Method |
Pressurized-Hopper / Venturi Method (with vibrator) |
| Dimensions and Weight |
W480 x D710 x H1,250 (excl. projections), 60kgs |
| Power Consumption |
110VA (100V, 50/60Hz) |
| Compressed Air Consumption |
Approx. 180 N Lit. / min. (0.5 Mpa)
Approx. 360 N Lit / min (0.5 Mpa) |
|
 |

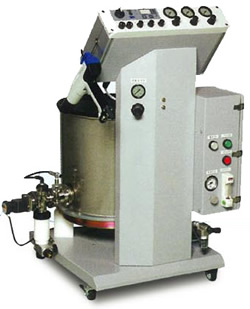

GX7000S-AF
Film thickness control is improved by Auger Type Powder Feed System (AF)
Features
1.Equipped with High-Voltage Pulse Power / Low-
Current Charging Mechanism
2.Auger can be easily replaced, simplifying
cleaning of feed system
3.Powder Spray Pattern is stable as powder
transportation air is constant. |
Specifications GX7000S-AF
| Applicable guns |
GX121 (and older models GX116, GX102, GX108) |
| High Voltage Source |
Pulse Power (standard corona charge is also available) |
| Power Cable Length |
5 m (STD) with connectors at both ends |
| Power Hose |
5 m x I.D. 9.5 mm (STD)
5 m x I.D. 12mm (Option) |
| Powder Hopper |
40 Liters (STD), 60 Liters (Option) |
| Maximum Powder Feed Rate |
50 to 300g/min |
| Powder Feed Method |
Fluid. –Bed/Auger-Extraction Method |
| Dimensions and Weight |
W530 x D520 x H980 (excl. projections), 40 kgs |
| Power Consumption |
110VA (100V, 50/60Hz) |
| Compressed Air Consumption |
Approx. 180 n Lit./min (0.5 Mpa) |
|
