Air Double Diaphragm Pumps


17P0201
Frame Type Double Diaphragm Pump

Net WT. :7.3 kgs
Gross WT. :8.3 kgs
Cuft:1.3’(170L x 86W x 165H)mm
Nylon Absorption Apparatus
PU Fluid Tube:1060mm(L)



17P0202
Frame Type Double Diaphragm Pump With Agitator

Net WT. :13.4 kgs
Gross WT. :15.4 kgs
Cuft: 3’(208L x 86W x 165H)mm
Agitation Shaft:410mm(L) With Drill Chuck
Aluminum Agitation Fan
Steel Rod With Nylon Absorption Apparatus:480mm



17P0202A
Stride Type Double Diaphragm Pump With Agitator

Net WT. :22 kgs
Gross WT. :25 kgs
Cuft: 3.2’(1015L x 215W x 405H)mm
Agitation Shaft:780mm(L) With Drill Chuck
Steel Rod With Nylon Absorption Apparatus:480mm



Advantages:
Double Diaphragm Pump is designed for general applications.
It will not generate sparks whilst in operation.
Can be used for coating in areas that require highest safety general paint coating, PU paint, UV special paint etc.
All of them can be connected and transferred very well.
Furthermore, it can be connected with Air Spray Gun, Electrostatic Spray Gun, and Auto Spray Gun directly. The double diaphragm pumps can also be used to circulate ink for printing.

● It will not generate sparks whilst in operation.
● Different paints can be connected and transferred very well.
● It can be used to circulate ink for printing.



Specifications:
Pressure:1:1
Transmitting Capacity:
5.0L/min(0.4 kg/cm2)
7.5L/min(1 kg/cm2)
10.5L/min(2 kg/cm2)
Used Air Pressure:1~5 kg/cm2
Max. Painting Pressure:5 kg/cm2
Max. Pump Speed:160 times/min(5 kg/cm2)
Min.Pump Speed: 80 times/min(0.4 kg/cm2)

HP:1/4 HP
Air Comsumption:11 C.F.M.
Maximum Vibration Ratio:12.3 M/S2
Free Speed:1:1→3000 R.P.M.



17P0240P

17P02100



Application:

Refineries & Chemical Processing
All kinds of abrasive chemical and petroleum slurries.
Oil skimming and general tank cleaning.

Food Processing Industry
Pumping peanut butter, pickle relish, tomato poste, dog food, jam, apple sauce, chocolate and all types of processed meat and poultry products.

Paint Manufacturing Plants
Pumping peanut, relish and pigments.

Adhesives & Glues
All tile, brick, pottery, china and ceramic slips.

Well Drilling
Perfect for water well drillers to pump the “mud” and grout after the well is drilled.

Sewage Sludge
All kinds of sludges in waste treatment plants.

Ships & Marine
Barge and tanker stripping of tanks and bilges.

Rubber Industry
All kinds of latex.

Power Transfer
KINGLION pumps are used to pump low density powders in many industries. Materials pumped include; carbon black, fumed silica, expanded mica and talc.



Features:

  1. No rotating parts (or ball bearings).
  2. Variable speed.
  3. No efficiency loss due to changing pressure of flow.
  4. Can run dry without damage.
  5. Dry, self-priming suction.
  6. No bypass piping required.
  7. Outlet can be closed without damage.
  8. No efficiency loss due to wear.
  9. The discharge quantity can be adjusted by manual, remote and automatic control.
  10. Explosion proof.
  11. No air pollution occurs in pump operation.
  12. Low power consumption due to variable viscosity material.
  13. No installation botherations.
  14. The diagphram can easily avoid damage, for the sake of drying by uniform air force.
  15. Completely portable.

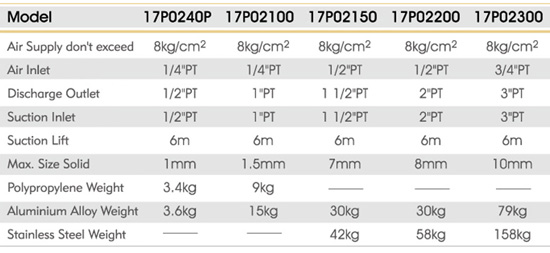

Specifications:



17P0240   17P02100   17P02150   17P02200   17P02300
