| Air Double Diaphragm Pumps |
| |

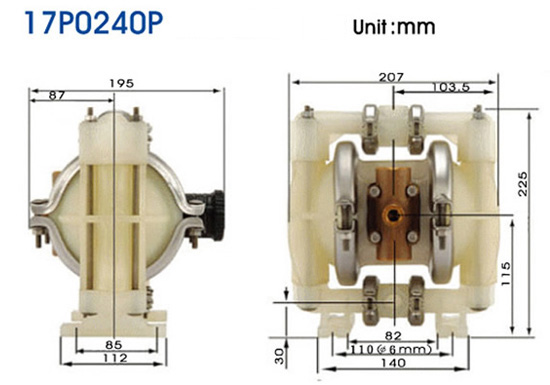

17P0240
PROPER LIQUID FOR TRANSPORTATION |
| |
 |
 |
| Dlaphragm Material |
Wetted Body |
| Aluminium |
0-60 C POLYPROLENE |
| NEOPRENE |
sea water, glaze,
ceramic plants |
sulphuric acid 20% |
| NBR |
lubricant, hcavy oil |
|
| NPDM |
trichloro methane |
|
| VITON |
asphalt |
|
| TEFLON(PTFE) |
toluene, dichloro ethane,
winter-green oil |
sodium hydroxide,
solution
for electric plating |
|
| WETTED BODY |
Polypro
Pylene
(P) |
Aluminium
Alloy
(A) |
|
|
|
|
| DLAPHRAGM |
Neoprene
(c) |
TEFLON
(PTFE)
(T) |
NBR
(N) |
EPDM
(E) |
VITON
(V) |
|
| VALVE SEAT |
Polypro
Pylene
(P) |
Aluminium
Alloy
(A) |
Stainless
Steel
(S) |
|
|
|
| BALL VALVE |
Polypro
Pylene
(P) |
Stainless
Steel
(S) |
TEFLON
(PTFE)
(T) |
EPDM
(E) |
Neoprene
(c) |
NBR
(N) |
|
 |
| |
| |
| |
|
|
